VE8950R. Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN. Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4. Daisy Chaining - Connects multiple displays through a single port. Video Wall Support.

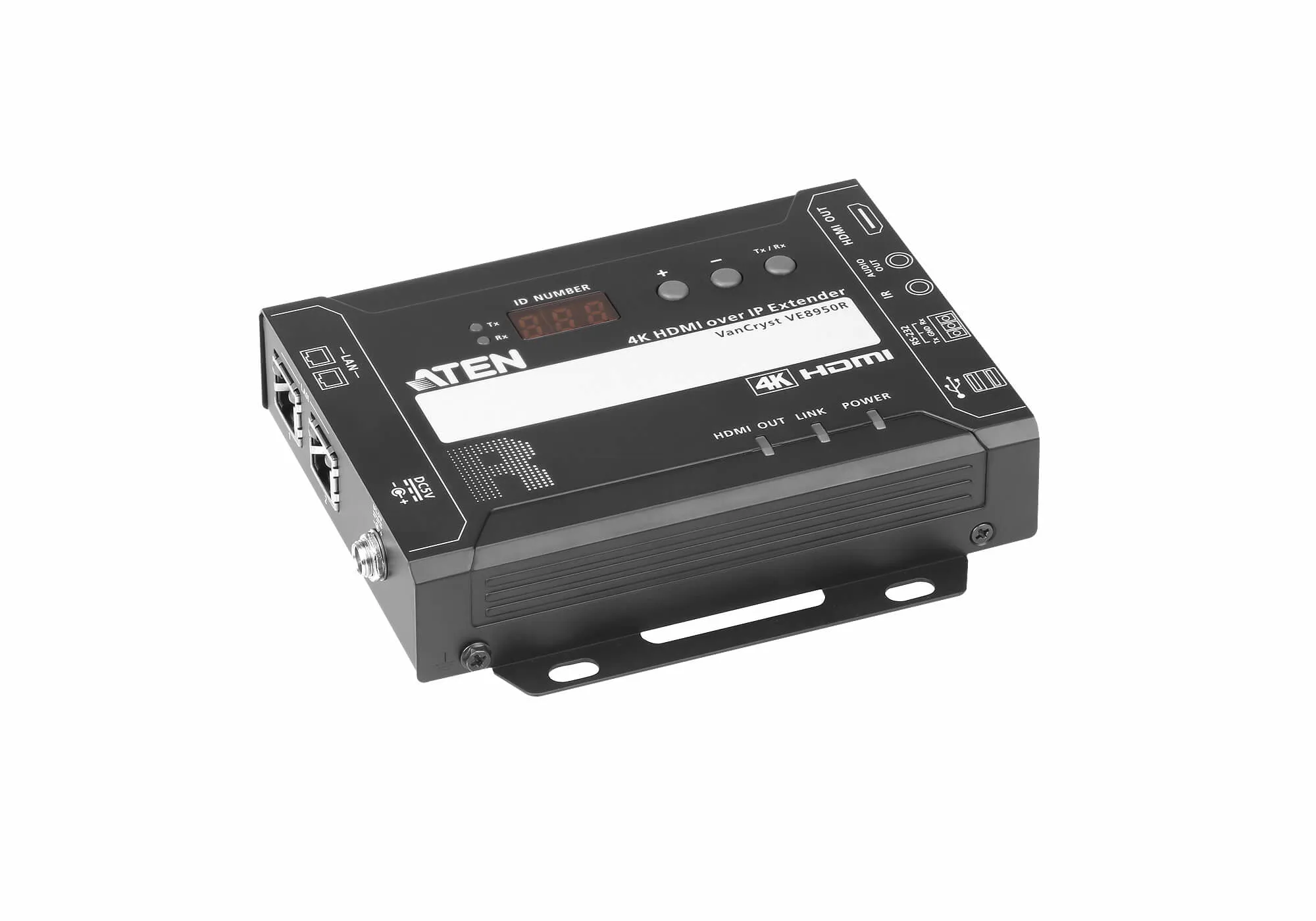

4K HDMI over IP Receiver - VE8950R, ATEN Networked AV
Supports up to 8 x 8 video wall (64 displays)*
Supports horizontal or vertical (90° and 270° rotation) display orientation.
Easily switches layout profiles, preview and drag-and-drop video sources via the intuitive web GUI. *Depends on your network architecture, please contact ATEN representatives for more details.
Description - 4K HDMI over IP Receiver
Video Input
Interfaces - 1 x HDMI Type A Female (Black)
Impedance - 100 Ώ
Video
Max. Data Rate - Average: 150 ~ 500Mbps
Compliance - HDMI
- HDCP Compatible
Max - Up to 4K@100m (Cat 5e/6, point to point)
Resolutions
Distance - *4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input - 1 x HDMI Type A Female (Black)
- 1 x Mini Stereo Jack Female (Green)
Control
IR - 1 x Mini Stereo Jack Female (Black)
RS-232 Connector - 1 x Terminal Block, 3 pole
- Baud Rate: 19200, Data Bits:8,
- Stop Bits:1, no parity and flow control
USB - 2 x USB Type A Female (White)
Pushbuttons
ID Number Selection - 3 x Push buttons
Connectors
Power - 1 x DC Jack (Black) with locking
Power Consumption - DC5V:4.53W:43BTU
Environmental
Operating Temperature - 0 - 40°C
Storage Temperature - 20 - 60°C
Humidity - 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight - 0.49 kg ( 1.08 lb )
Dimensions (L x W x H) with bracket - 14.02 x 12.30 x 3.06 cm (5.52 x 4.84 x 1.2 in.)
Dimensions (L x W x H) without bracket - 13.60 x 10.10 x 2.96 cm (5.35 x 3.98 x 1.17 in.)
What's In The Box
.1x VE8950R 4K HDMI over IP Receiver
.1x RS-232 Terminal block
.1x 5V Power adapter
.1x User instructions
